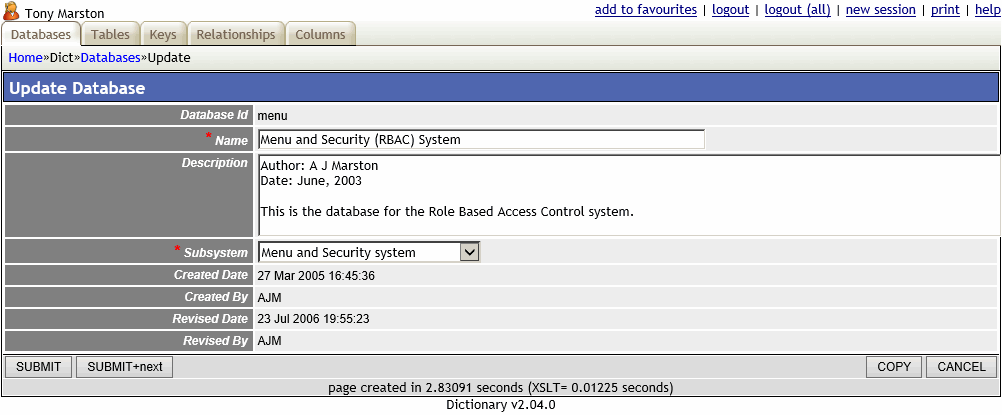

dict_database(upd1) - Update Database

dict_database(upd1) (17K)

The purpose of this function is to allow the user to update the details of entries on the DICT_DATABASE table of the data dictionary.

This form is accessed by an option on the navigation bar in the List Database screen.

For a complete description of how this type of form works please see Transaction Pattern UPDATE 1.

Field List
Field NameTypeDescription
Database ID STRING Required. Primary Key, as loaded by the IMPORT function.
Name STRING Required. The name for this entry.
Description TEXT Optional. A description for this entry.
Subsystem STRING Required. Must indicate an entry on the SUBSYSTEM table as this identifies the folder/directory into which all export files will be written.
The following fields are set automatically by the system:
created_date DATE+TIME The date and time on which this record was created.
created_user STRING The identity of the USER who created this record.
revised_date DATE+TIME The date and time on which this record was last changed.
revised_user STRING The identity of the USER who last changed this record.
