Popup/Picklist Forms

For an overview of Popup/Picklist forms please go here.


X_Pop1 - choose PERS_TYPE


This form allows an occurrence of PERSON TYPE to be selected and passed back to the parent form.


X_Pop1_2 - choose OPTION


This form allows an occurrence of OPTION to be selected and passed back to the parent form.


X_Pop1_3 - choose SCREEN


This form allows an occurrence of SCREEN to be selected and passed back to the parent form.


X_Pop1_4 - choose TREE_TYPE


This form allows an occurrence of TREE TYPE to be selected and passed back to the parent form.


X_Pop2 - choose PERSON


This form allows an occurrence of PERSON to be selected and passed back to the parent form.


X_Pop3 - choose PERSON


This form allows an occurrence of PERSON to be selected and passed back to the parent form.


X_Pop4 - choose PERSON within PERS_TYPE


This form allows an occurrence of PERSON to be selected and passed back to the parent form.

An occurrence of PERSON TYPE must be selected using popup X_POP1 before occurrences of PERSON can be retrieved.


X_Pop4_2 - choose TREE_LEVEL within TREE_TYPE


This form allows an occurrence of TREE LEVEL to be selected and passed back to the parent form.

An occurrence of TREE TYPE must be selected using popup X_POP1_4 before occurrences of TREE LEVEL can be retrieved.


X_Pop5 - choose PERSON within PERS_TYPE


This form allows an occurrence of PERSON to be selected and passed back to the parent form.

An occurrence of PERSON TYPE must be selected using popup X_POP1 before occurrences of PERSON can be retrieved.

The ADD 2 button will allow a new PERSON to be added.

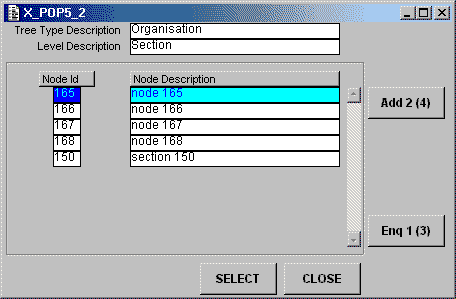

X_Pop5_2 - choose TREE_NODE


This form allows an occurrence of TREE NODE to be selected and passed back to the parent form. Only those nodes which are not currently linked to a senior node will be included in this display.

Note that the TREE LEVEL is passed down from the parent form.

The ADD 2 (4) button will allow a new TREE NODE to be added.

The ENQ 1 (3) button will show the details of the selected TREE NODE.
